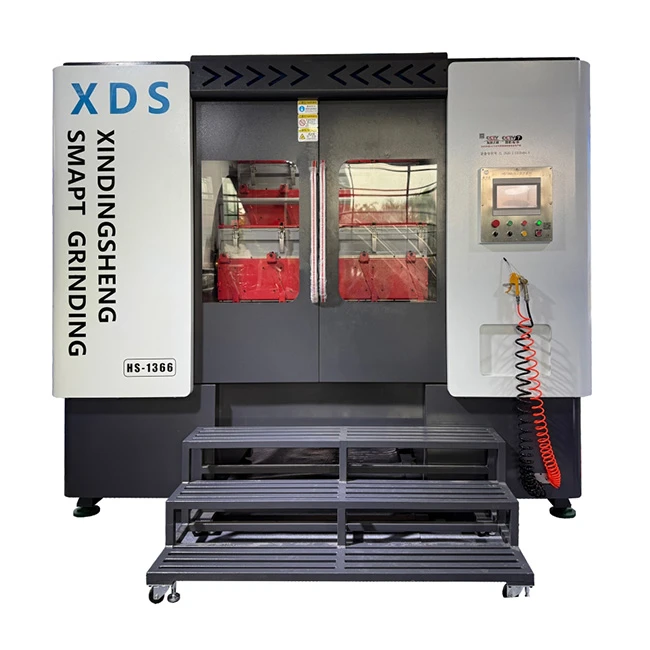

Multi Station Centrifugal Polishing Tshuab

Dongguan Xindingsheng Intelligent Sib Tsoo Technology Co., Ltd. Thov so assured mus ua lag luam wholesale bulk customized multi chaw nres tsheb centrifugal polishing tshuab los ntawm peb lub hoobkas. Rau kev hais lus, tiv tauj peb tam sim no.

Qhov no yog multi-chaw nres tsheb ywj pheej cheeb tsam centrifugal xov tshuab, tshwj xeeb uas tsim los rau ib txhij sib tsoo ntawm ntau- ntau yam thiab me -batch qhov chaw. Hloov kho los ntawm tus qauv 990A, nws tau txais ib qho kev ywj pheej ntawm lub nruas tsim, tso cai rau ib lub tshuab zom cov khoom sib txawv ntawm tib lub sijhawm yam tsis muaj kev sib xyaw lossis kev sib tsoo, txhim kho kev sib tsoo zoo ntawm ntau yam - ntau yam.

Nruab nrog 33KW siab- lub cev muaj zog, qhov ceev tuaj yeem hloov kho ntawm 0-100 RPM nrog lub zog muaj zog. Plaub txheej ntawm nruas txhawb synchronous ceev tswj thiab ywj siab unloading, ntsuas kev sib tsoo efficiency thiab ua hauj lwm yooj. Lub nruas yog txawm peem rau nrog detachable ultra-thin polyurethane partitions (tsuas yog 3 hli tuab), uas xyuas kom meej qhov chaw siab siv; cov partitions tuaj yeem raug tshem tawm dawb, tso cai rau lub nruas siv raws li tus qauv, paub txog kev ua haujlwm ntawm ob lub hom phiaj.

Lub nruas lub cev yog ua los ntawm steel phaj, thaum lub nruas puab thiab partitions yog ua los ntawm hnav-resistant polyurethane, featuring zoo heev hnav tsis kam thiab yooj yim tu. Lub nruas npog tau txais kev ywj pheej ntawm kev sib khi tsim, ua kom muaj kev sib cais qhib ntawm ib cheeb tsam lub npog kom yooj yim dua thauj khoom thiab tshem tawm. Lub tshuab tag nrho tau txais cov qauv tsim los tiv thaiv kev sib tsoo cov kua dej sib tsoo, haum rau kev sib tsoo cov khoom siv hluav taws xob, hluav taws xob thiab qhov chaw pib hauv ntau- ntau yam thiab me me -batch ntau lawm.

(1) Zuag qhia tag nrho
Hloov kho dua tshiab los ntawm 990A qauv nrog cov qauv zoo tshaj plaws ntawm lub nruas, lub tshuab feem ntau yog tsim los ntawm cov khaub thuas- dov steel sab sauv, lub hauv paus welded, ntau- chaw nres tsheb thaj tsam nruas turntable sib dhos, ntau - cov khoom siv hluav taws xob ua haujlwm thiab cov khoom siv tau txais. Qhov kev hloov kho tseem ceeb nyob hauv plaub pawg ntawm thaj chaw ywj pheej nruas, thiab lwm yam qauv kuj tau ua kom zoo rau kev ua haujlwm yooj yim dua.
① Upper Npog: Welded los ntawm txias- dov steel daim hlau, pem hauv ntej tiv thaiv zawv zawg qhov rooj txais ob - qhov rooj tsim rau kev ua haujlwm ib txhij ntawm plaub lub nruas, nrog rau kev ua haujlwm - nyob rau hauv kev mus ncig uas txiav tawm lub zog thaum lub qhov rooj qhib. Lub qhov cua louvers ntawm ob qho kawg yog detachable kom yooj yim tu thiab cua sov dissipation.
② Base: Welded nrog channel steel, nruab nrog shockproof ko taw pads hauv qab. Lub cev muaj zog kho phaj txais yuav ob lub- ntsia hlau hloov qauv, ua kom yooj yim los kho txoj siv tawv. Lub nruas pab pawg tig mechanism thiab ntau -chaw txais trough raug ntsia rau hauv lub hauv paus; lub trough sib raug rau thaj tsam nruas kom sau cov khoom sib txawv thiab tiv thaiv kev sib xyaw.
③ Ntau- chaw nres tsheb Cheeb Tsam Drum Turntable Assembly: Lub turntable loj yog ua los ntawm steel phaj, nrog plaub lub nruas ywj siab. Cov partitions yog detachable ultra-thin polyurethane khoom, tsau los ntawm buckles kom yooj yim disassembly. Lub nruas npog yog ib cheeb tsam ywj siab xovxwm- hom, nrog rau txhua cheeb tsam muaj nyias lub hau kaw uas tuaj yeem qhib ib tus zuj zus. Lub nruas tig tshuab txais cov cab iav reducer + saw tsav, txhawb synchronous tig ntawm plaub lub nruas lossis ywj siab tig ntawm ib lub nruas (yeem). Lub nruas sab hauv yog ua los ntawm hnav- tiv thaiv polyurethane, ntsia nrog lub phaj siab kom hloov tau yooj yim.
④ Multi-functional Hluav taws xob txee: Ua los ntawm txias-rolled steel nrog IP54 plua plav thiab dej tsis kam. Cov hluav taws xob tswj vaj huam sib luag yog nruab nrog cov kev xaiv cheeb tsam inching keyboards, tso cai ywj pheej inching tswj ntawm ib lub nruas rau kev ua haujlwm yooj yim dua.

(2) Txoj Cai Ua Haujlwm
Raws li lub hauv paus ntsiab lus sib tsoo ntawm 990A qauv, lub cev muaj zog tsav lub turntable loj rau tig, thiab lub iav teeb tsav plaub lub nruas kom tig mus rau qhov sib txawv, tsim dual centrifugal quab yuam. Qhov sib txawv tseem ceeb yog thaj chaw ywj pheej tsim nyob rau hauv lub nruas: workpieces thiab abrasives nyob rau hauv txhua cheeb tsam yog av ntawm nws tus kheej, nrog centrifugal quab yuam tsuas yog ua nyob rau hauv lub cheeb tsam, realizing ib txhij sib tsoo ntawm multi- ntau yam yam tsis sib tov los yog kev sib tsoo. Plaub lub nruas txhawb synchronous ceev kev tswj xyuas kom muaj kev sib tsoo zoo ib yam thiab zoo nyob thoob plaws txhua qhov chaw, thaum muaj kev ywj pheej unloading muaj rau tso tawm cov khoom sib cais raws li lawv cov kev sib tsoo, txhim kho kev ua haujlwm yooj yim.

(1) Cov txheej txheem ua haujlwm
① Txuas lub fais fab mov, nias lub inching hloov kho lub nruas mus rau ib qho chaw uas lub qhov ncauj sab sauv yog qaij 10℃rau pem hauv ntej. Qhib cov xovxwm - hom npog ntawm ib cheeb tsam lossis txhua cheeb tsam raws li xav tau.
② Degrease ntau hom workpieces nyias nyias. Load workpieces thiab abrasives rau hauv ib cheeb tsam sib txawv ntawm qhov sib piv ntawm 1: 3, nrog lub peev xwm thauj khoom ntawm txhua cheeb tsam yog 60% -65% ntawm nws ntim. Ntxiv cov abrasives thiab dej haum rau txhua cheeb tsam (dej theem yuav tsum submerge lub workpieces thiab abrasives), thiab fasten lub hau ntawm txhua cheeb tsam.
③ Kho lub pob qhov nrawm mus rau lub hom phiaj ceev thiab pib lub tshuab. Kev sib tsoo tsis tu ncua yuav tsum tsis pub tshaj 90 feeb; kaw kom txias tom qab.
④ Tom qab sib tsoo, tshem tawm cais lossis synchronously raws li kev sib tsoo ntawm qhov sib txawv. Ncuav cov khoom ua haujlwm los ntawm ntau thaj chaw mus rau hauv cov khoom sib txuas ntawm qhov tau txais trough los tiv thaiv kev sib xyaw.

(2) Kev tu txhua hnub
① Tom qab 500 teev ua haujlwm, ntxiv ZL-3 calcium-based bearing grease rau tag nrho cov kabmob.
② Ntxuav lub sab hauv ntawm txhua qhov chaw nruas thiab tau txais cov trough compartment tom qab ua haujlwm txhua hnub; so qhuav lub nruas sab hauv thiab muab faib kom tsis txhob xeb los ntawm cov dej sib tsoo seem. Tsis tu ncua xyuas lub sealing rings ntawm cheeb tsam npog thiab muab faib buckles, thiab hloov los yog fasten lawv yog laus los yog xoob.
③ Nquag txheeb xyuas qhov nro ntawm txoj siv lub cev muaj zog thiab txoj hlua tig, thiab kho tam sim yog tias pom muaj qhov txawv txav. Ntxuav cov plua plav hauv lub txee hluav taws xob txhua lub lim tiam thiab tshawb xyuas cov kev sib txuas ntawm lub davhlau ya nyob twg.
④ Tam sim ntawd kaw lub tshuab yog tias lub suab nrov txawv txav tshwm sim thaum lub sijhawm ua haujlwm; tsom rau kev tshuaj xyuas bolts, bearings, gears, thiab lwm yam khoom, thiab hloov cov khoom puas tam sim ntawd.

Haum rau deburring, chamfering thiab polishing ntawm ntau- ntau yam, me me -batch hlau qhov chaw nyob rau hauv hardware, electronics, tsheb qhov chaw, precision machinery thiab lwm yam lag luam. Nws tuaj yeem zom ntau yam ntawm qhov sib txawv ntawm qhov tshwj xeeb ib txhij yam tsis muaj kev sib xyaw lossis kev sib tsoo, ua kom zoo dua qhov kev sib tsoo ntawm ntau yam - ntau yam. Nws yog qhov zoo tagnrho rau kev ua cov nroj tsuag koom nrog me me - mus rau - nruab nrab batch thiab ntau- ntau yam ntau lawm.
